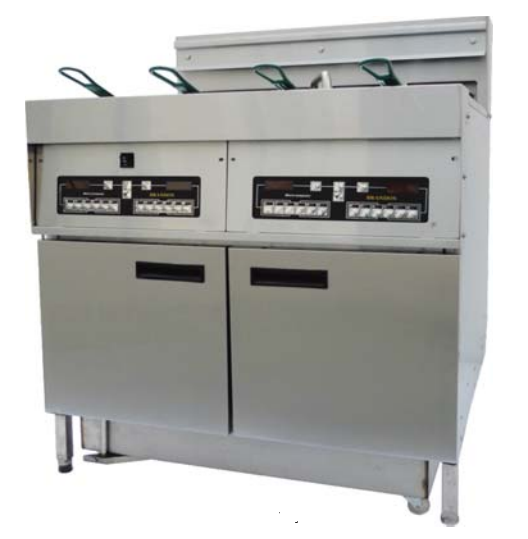

Electric deep fryer with oil filter system

Model：CEF-36C
Size：800*800*1180 (MM)
Weight：110 KG
Color：Stainless steel color
Material：Stainless steel
Capacity：32L*2

Product details

Electric deep fryers Features :

High quality full stainless steel body

You can choose computer control pannel or Manual operation electric deep fryer

You can choose with oil filter system or without oil filter system

Working height 840 mm

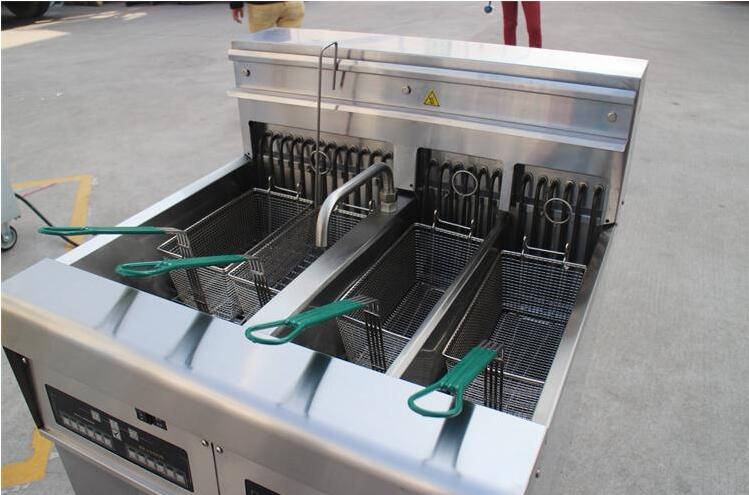

With two baskets

Group type tank fryers,two tank will with four baskets
Tank capacity : 28 L per tank or 14L per tank
380V, 3ph, 36 KW ,220v,1hp,9kw
12 or 6 programable cook cycles;
High temperature limiting safety feature
Thermostatic control ( from 0℃ to 195℃ )

Model	No of Tank	No of basket	Programming channels / per tank	Fry are (mm)	Capacity (each tank)	Electrical	Unit size (mm)
CEF-18C	Single tank	Two basket	6	350*420	28-32L per tank	380v,3ph,18kw	400 x 800 x 1100
CEF-18C2	Double tank	Two basket	2	(165429)2	14-16L per tank	380v,3ph,2*9kw	400 x 800 x 1100
MEF-18	Single tank	Two basket	Mechanical type	350*420	28-32L per tank	380v,3ph,18kw	400 x 800 x 1100
MEF-182	Double tank	Two basket	Mechanical type	(165429)2	14-16L per tank	380v,3ph,2*9kw	400 x 800 x 1100
MEF-9	Single tank	Two basket	Mechanical type	320*308	12-14L per tank	220v,1ph,9kw	400 x 800 x 1100
CEF-9C	Single tank	Two basket	12	320*308	12-14L per tank	220v,1ph,9kw	400 x 800 x 1100

Electric deep fryers with oil filter system:

Model	No of Tank	No of basket	Programming channels / per tank	Fry are (mm)	Capacity (each tank)	Electrical	Unit size (mm)
CEF-18CF	Single tank with oil filter system	Two baskets	12	350*420	28-32L per tank	380v,3ph,18kw	400 x 800 x 1100
CEF-18C2F	Double tank with oil filter system	Two baskets	12	(165429)2	14-16L per tank	380v,3ph,2*9kw	400 x 800 x 1100
CEF-9CF	Single tank with oil filter system	Two baskets	12	320*308	12-14L per tank	220v,1ph,9kw	400 x 800 x 1100
MEF-9F	Single tank with oil filter system	Two baskets	Mechanical type	320*308	14-16L per tank	220v,1ph,9kw	400 x 800 x 1100
CEF-36GF	Group style,double tank with oil filter system	Four baskets	12*2	(350420)&(165429)*2	28-32L per tank	380v,3ph,2*18kw	800 x 800 x 1100
CEF-36GCF	Group style with chips dump,double tank with oil filter system	Four baskets	12*2	(350420)2	28-32L per tank	380v,3ph,2*18kw	1200 x 800 x 1100

Standard features :

Electric Fryer with oil filter

systerm

Durable high power heating element to enable quick temperature recovery
Heating element can be lifted up for fry pot cleaning

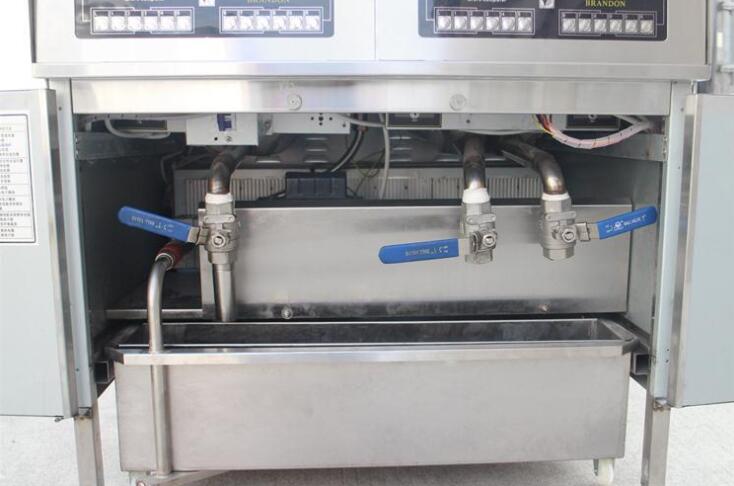

Space saving built -in oil filter .oil receptacle can be easily accessed for filter envelop changing.
Solid state control with long life span.
Deep cold zone of fry pot traps food crumbs to reduce oil contamination
High temperature safety limit
Service friendly : modular design
Stainless steel drain valve with safety latch
CE compliant

Accessories :
fryer baskets
Crumb Sreen
Drain clog clearance prod
Drain oil extension pipe

Enhancced features of computer control model:

Automatic melt cycle for solid shortening
Electronic temperature sensor : quick response to load
Buzzer goes off at the end of fry cycle process or when it reaches the stage of ''shake basket reminding ''.this feature is good for frying French fries.
Precise temperature control for computer model.No unpleasant temperature overshoot which shortens oil lifespan and degrades food quality

electric double basket deep fryer (1).png

electric double basket deep fryer (13).jpg

electric double basket deep fryer (2).jpg

electric double basket deep fryer (6).jpg

electric double basket deep fryer (3).jpg

electric double basket deep fryer (1).jpg
