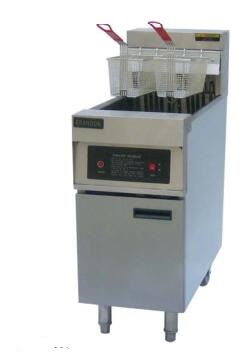

Electric deep fryer

Electric deep fryer
  • Electric deep fryer
  • Electric deep fryer
  • Model:MEF-9
  • Size:400*800*1180 (MM)
  • Weight:50KG
  • Color:Stainless steel color
  • Material:Stainless steel
  • Capacity:28L
Product details
Electric deep fryer

Dimension: 400(W)*800(D)*880 ( working height ) mm
(Height including splash back is 1100 mm)

Electric deep fryers Features :



High quality full stainless steel body

You can choose computer control pannel or Manual operation electric deep fryer

You can choose with oil filter system or without oil filter system

Working height 840 mm

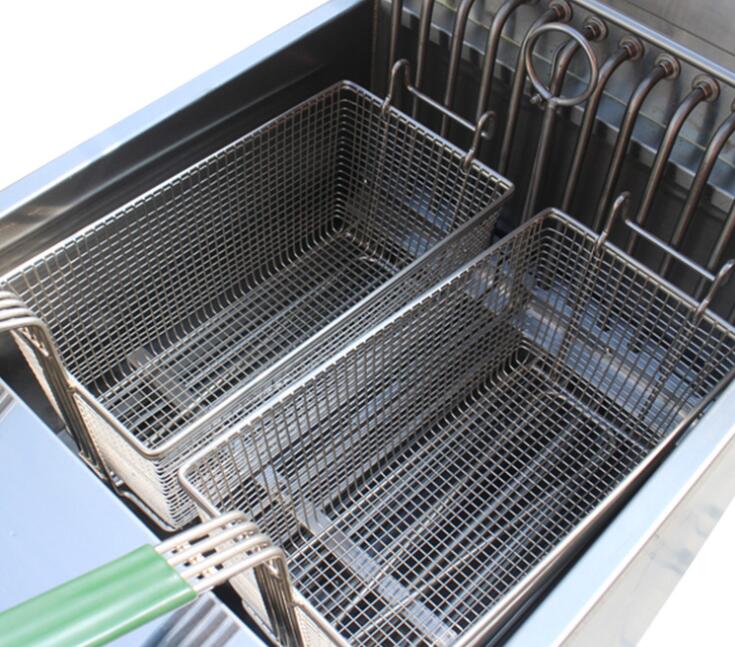

With two baskets

Group type tank fryers,two tank will with four baskets
Tank capacity : 28 L per tank or 14L per tank
380V, 3ph, 36 KW  ,220v,1hp,9kw
12 or 6 programable cook cycles;
High temperature limiting safety feature
Thermostatic control ( from 0℃ to 195℃ )



Model No of Tank No of basket Programming channels / per tank Fry are (mm) Capacity (each tank) Electrical Unit size (mm)
CEF-18C Single tank Two basket 6 350*420 28-32L per tank 380v,3ph,18kw 400 x 800 x 1100
CEF-18C2 Double tank Two basket 2 (165*429)*2 14-16L per tank 380v,3ph,2*9kw 400 x 800 x 1100
MEF-18 Single tank Two basket Mechanical type 350*420 28-32L per tank 380v,3ph,18kw 400 x 800 x 1100
MEF-182 Double tank Two basket Mechanical type (165*429)*2 14-16L per tank 380v,3ph,2*9kw 400 x 800 x 1100
MEF-9 Single tank Two basket Mechanical type 320*308 12-14L per tank 220v,1ph,9kw 400 x 800 x 1100
CEF-9C Single tank Two basket 12 320*308 12-14L per tank 220v,1ph,9kw 400 x 800 x 1100



Electric deep fryers with oil filter system:



Model No of Tank No of basket Programming channels / per tank Fry are (mm) Capacity (each tank) Electrical Unit size (mm)
CEF-18CF Single tank with oil filter system Two baskets 12 350*420 28-32L per tank 380v,3ph,18kw 400 x 800 x 1100
CEF-18C2F Double tank with oil filter system Two baskets 12 (165*429)*2 14-16L per tank 380v,3ph,2*9kw 400 x 800 x 1100
CEF-9CF Single tank with oil filter system Two baskets 12 320*308 12-14L per tank 220v,1ph,9kw 400 x 800 x 1100
MEF-9F Single tank with oil filter system Two baskets Mechanical type 320*308 14-16L per tank 220v,1ph,9kw 400 x 800 x 1100
CEF-36GF Group style,double tank with oil filter system Four baskets 12*2 (350*420)&(165*429)*2 28-32L per tank 380v,3ph,2*18kw 800 x 800 x 1100
CEF-36GCF Group style with chips dump,double tank with oil filter system Four baskets 12*2 (350*420)*2 28-32L per tank 380v,3ph,2*18kw 1200 x 800 x 1100





Standard features :

Electric Fryer with oil filter
systerm
Durable high power heating element to enable quick temperature recovery
Heating element can be lifted up for fry pot cleaning
Space saving built -in oil filter .oil receptacle can be easily accessed for filter envelop changing.
Solid state control with long life span.
Deep cold zone of fry pot traps food crumbs to reduce oil contamination
High temperature safety limit
Service friendly : modular design
Stainless steel drain valve with safety latch
CE compliant
Accessories :
fryer baskets
Crumb Sreen
Drain clog clearance prod
Drain oil extension pipe


Enhancced features of computer control model:

Automatic melt cycle for solid shortening
Electronic temperature sensor : quick response to load
Buzzer goes off at the end of fry cycle process or when it reaches the stage of ''shake basket reminding ''.this feature is good for frying French fries.
Precise temperature control for computer model.No unpleasant temperature overshoot which shortens oil lifespan and degrades food quality
